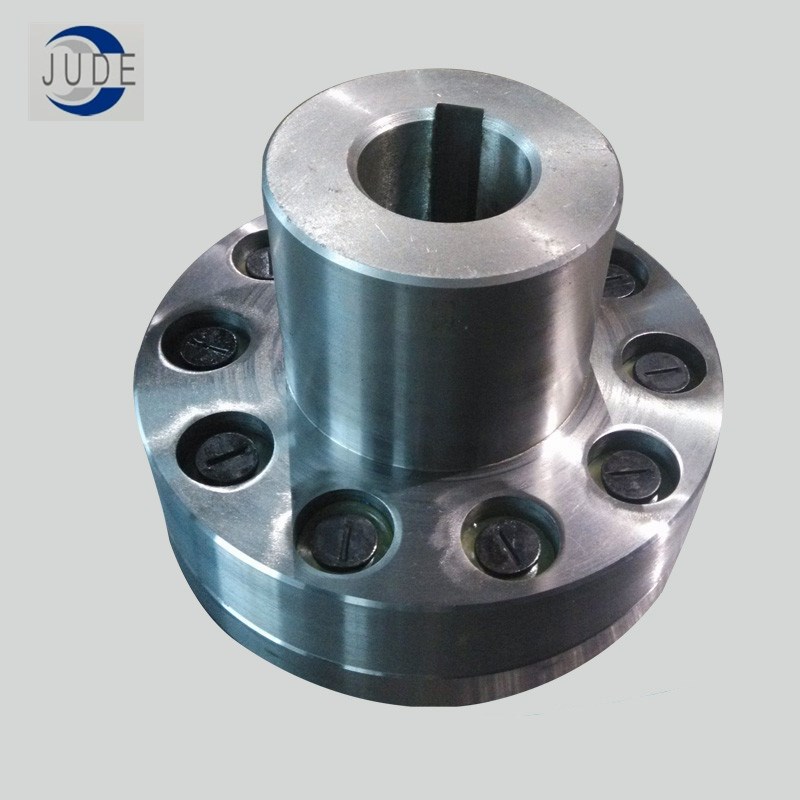

TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard

Name: TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard
Brand: jude
Price: 1 USD

Wholesale TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard from china suppliers

Brand Name : jude

Place of Origin : cangzhou、china

Packaging Details : Wooden Box Or Customized

Supply Ability : 1000 Set/Sets per Month

Model Number : TL pin bush coupling

MOQ : 10

Certification : CE、ISO

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Structure : Pin Bush coupling

Flexible or Rigid : Flexible

Standard or Nonstandard : Standard

Material : Steel

Product name : TL flexible elastic sleeve dowel pin shaft coupling

Type : Elastic Sleeve

Surface Treatment : Carburizing, blackening, electroplating, quenching.

heat treatment : High frequency quenching heat treatment

The radial displacement : 0.2~0.6mm

Application : Pumps

MAX torque : 4-15680

speed : 1000-4000

MOQ : 1 Set

Port : Tianjin

Contact Now

TL flexible elastic sleeve dowel pin shaft coupling

The coupling consists of two hubs:one pin hub with the corresponding pins and a bush hub.The torque is transmitted via the steel pins with their taper elastomer rings and the corresponding bores in the bush hub.

As a result all kinds of shaft misalignment,for example caused by inaccurate alignment of the driving or driven elements,is compensated for reliably and vibrations and shocks are compensated for excellently.

The coupling is maintenance-free and is used in general engineering and the pump industy,conveyor technology,etc.For an optimum adjustment to the different applications,14-off size are available covering torques up to 29100Nm.Apart from the standard programme customized solutions are available.

Features of TLseries pin & bush coupling

Torsinally flexible, matintenace free

Vibration-reducing

Tadial assembly/disassembly

Axial plug-in,failsafe

Good dynamical features

Short design

Ptotected surfaces

Elastomer made of NBR

TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard

Type	Nominal torque	Max speed	Bore diameter	Bore length		Dimension			Mass
	Tn	[n]	d,d1,dz	Y	J,J1,Z	D	S	A	kg
	N.m	r/min		L	L1	D	S	A
TL1	6.3	8800	9~14	20~32	14~20	71	3	18	1.2
TL2	16	7600	12~19	32~42	20~42	80	3	18	1.8
TL3	31.5	6300	16~25	42~62	30~62	95	4	35	2
TL4	63	5700	20~32	52~82	38~82	106	4	35	2.4
TL5	125	4600	25~40	62~112	44~112	130	5	45	8.5
TL6	250	3800	32~50	82~112	60~112	160	5	45	11
TL7	500	3600	40~65	112~142	84~142	190	5	45	16
TL8	710	3000	45~80	112~172	84~172	224	6	65	26
TL9	1000	2850	50~85	112~172	84~172	250	6	65	32
TL10	2000	2300	63~120	142~212	107~212	315	8	80	68
TL11	4000	1800	80~140	172~252	132~252	400	10	100	125
TL12	8000	1450	100~180	212~302	167~302	475	12	130	220
TL13	16000	1150	120~220	212~352	167~352	600	14	180	430

Product Description

TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard

About Us

TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard

Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

TL Dowel Bush Pin Type Flexible Coupling Elastic Sleeve Standard

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.

Q4:How long is your warranty?

A: Our Warranty is 12 month.

Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing

Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
